Automatic optical
inspectioN (AOI)

Optical testing at the highest level.

Maximum quality assurance of your components.

By integrating professional, three-dimensional AOI systems into our systems, you benefit from maximum quality assurance of your products.

Innovative image processing with appropriate software algorithms make it possible to identify damaged components at high speed, automatically eject and, if necessary, rework them by trained staff.Depending on your product and process, the right AOI system for you will be used.

ADVANCED IMAGE PROCESSING

In order to continuously improve the image processing capabilities and thus the quality of the micro products to be inspected, we work with the image processing software NeuroCheck. This software can be preconfigured for our customers in the system or is provided by us as a development environment. No advanced programming knowledge is required for this.

We are happy to offer you individual training depending on the functional scope of the software usage.

Functions of the image processing software are among others:

  • Presence tests (e.g. metering tracks, components,...)
  • Measurement tasks (e.g. distances, angles,...)
  • Surface inspections (scratches,...)
  • Identification (1D/2D code, data matrix)
  • Clear text recognition
  • Shape recognition
  • Range of functions can be extended as desired with plug-ins

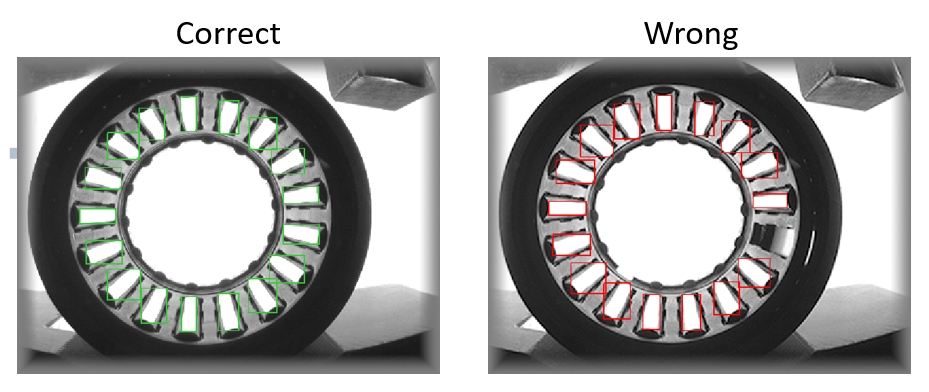

EXAMPLE OF presence TEST

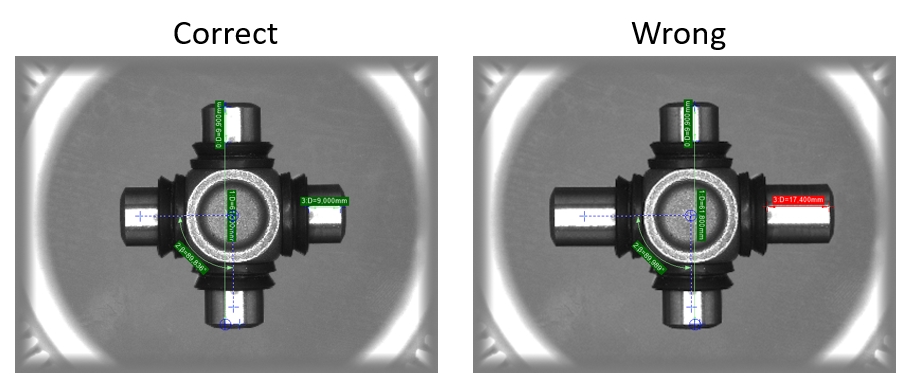

EXAMPLE OF MEASUREMENT

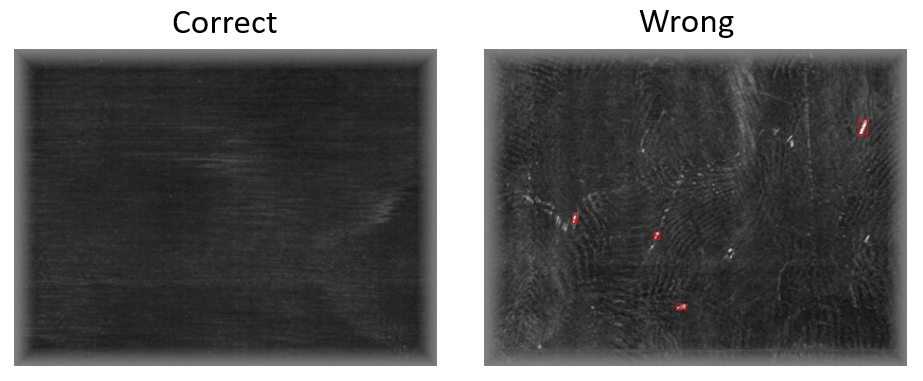

EXAMPLE OF SURFACE CONTROL
