Laser Soldering

With highly efficient laser soldering systems for the maximum degree of automation.

Raise your production line to a completely new level of quality and performance with laser soldering systems from Häcker Automation. In particular, very small components in the micro and nano range that are temperature-sensitive and have to be assembled in a specified manner benefit from our selective laser soldering process.


SELECTIVE LASER SOLDERING: ADVANTAGES IN MICROASSEMBLY

THIS DIODE LASER CREATES SOLDER CONNECTIONS AT HIGH PROCESS SPEEDS.

In microassembly, there are numerous applications in which a soldering process is crucial for the quality of the components. For example, if they are particularly temperature sensitive, a standard soldering process cannot be used. Selective soldering technology is then a perfect solution.

When it comes to laser soldering, we cooperate with the Mergenthaler company and, depending on customer requirements, integrate a very compact laser soldering system with or without wire feed into our laser systems. This laser is used especially for temperature-sensitive components as well as for components that have to be assembled selectively and for components that require subsequent contacting.
Selective laser soldering is mainly used for processes in the optics, medical technology and automotive industries.

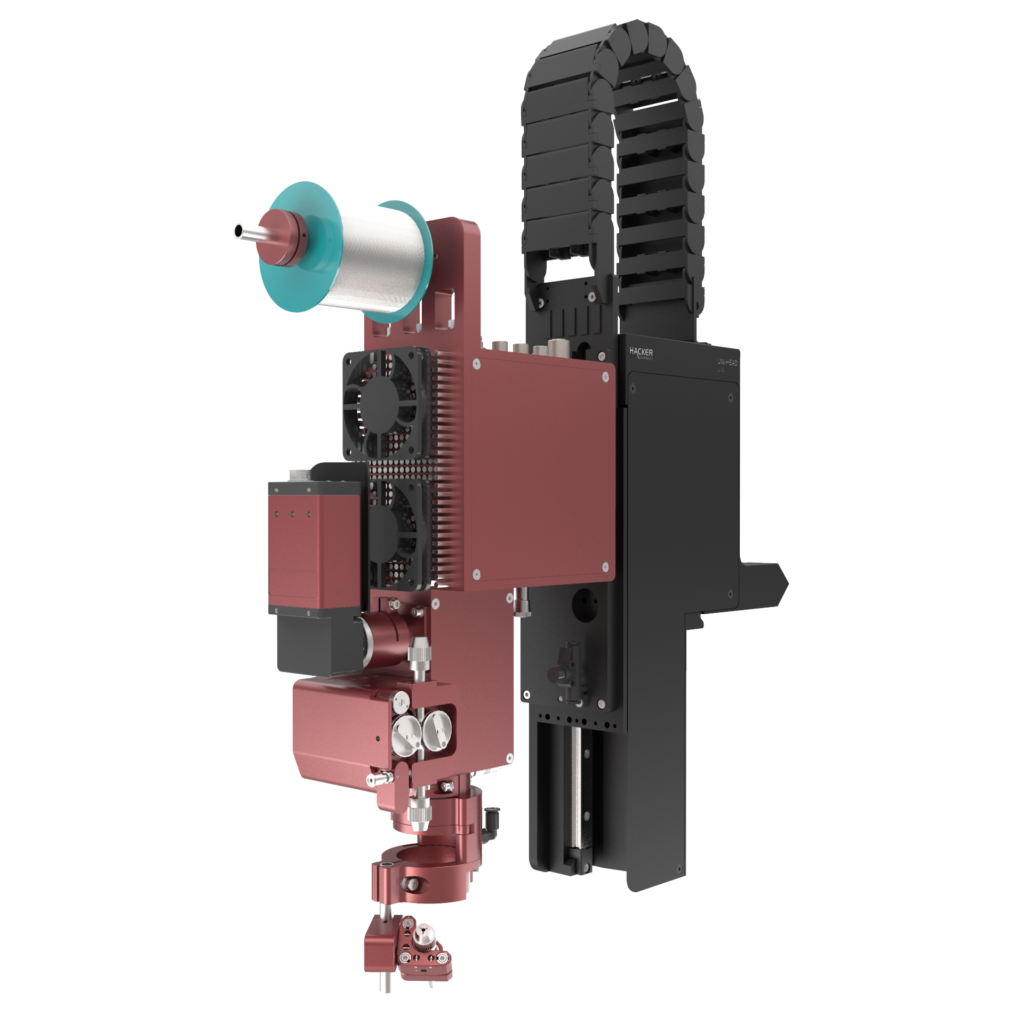

The laser with feed axis has an integrated laser source, optics, and process control and monitoring technology. An integrated pyrometer measures the heat input at the solder joint without contact.
During applications, an integrated protective glass with air curtain protects the laser optics from developing particles and smoke. A ring light ensures optimum illumination of the processing area. To ensure continuous process monitoring, the diode laser is equipped with a digital camera. Another advantage is the automatic storage of all process diagrams.


Laser Head in the shop

More about laser soldering.

3D Laser Soldering

YouTube iFrames are disabled due to your data permission settings. Change your permissions.

haecker-automation-gmbh-call-to-action

Talk to us

Increase your degree of automation in the soldering process area now.
