Laser Soldering.

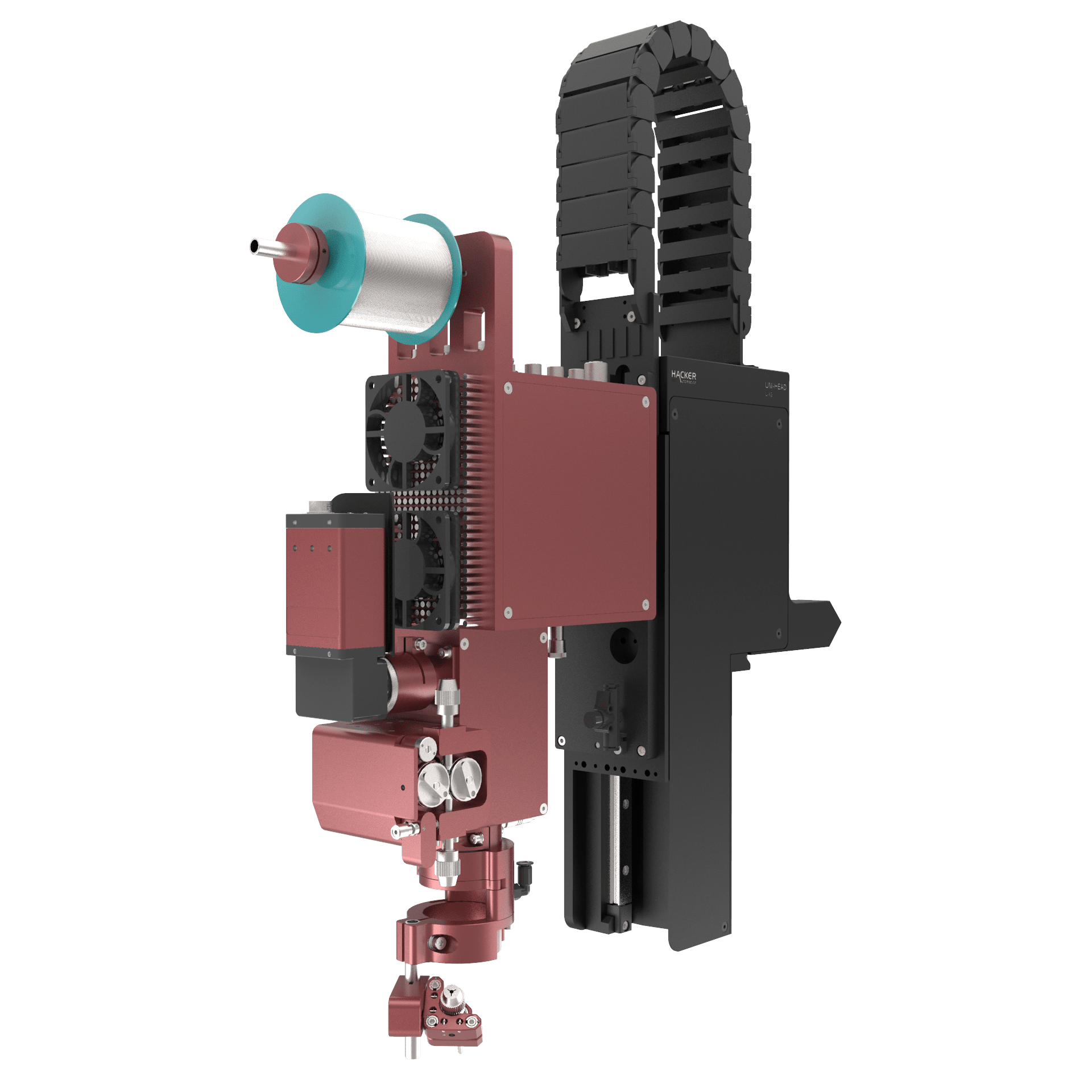

There are numerous applications in which a soldering process is crucial for the quality of the components. For example, if they are particularly temperature sensitive, a standard soldering process cannot be used. Selective soldering technology is a perfect solution. When it comes to laser soldering, we cooperate with the Mergenthaler company. Depending on customer requirements we integrate a very compact laser soldering system with or without wire feed into our laser systems. This laser is used especially for temperature-sensitive components as well as for components that have to be assembled selectively and for components that require subsequent contacting. Selective laser soldering is mainly used for processes in the optics, medical technology and automotive industries. The laser with infeed axis has an integrated laser source, optics, and process control and monitoring technology. An integrated pyrometer measures the heat input at the solder joint without contact. During applications, an integrated protective glass with air curtain protects the laser optics from developing particles and smoke. A ring light ensures optimum illumination of the processing area. To ensure continuous process monitoring, the diode laser is equipped with a digital camera. Another advantage is the automatic storage of all process diagrams.
